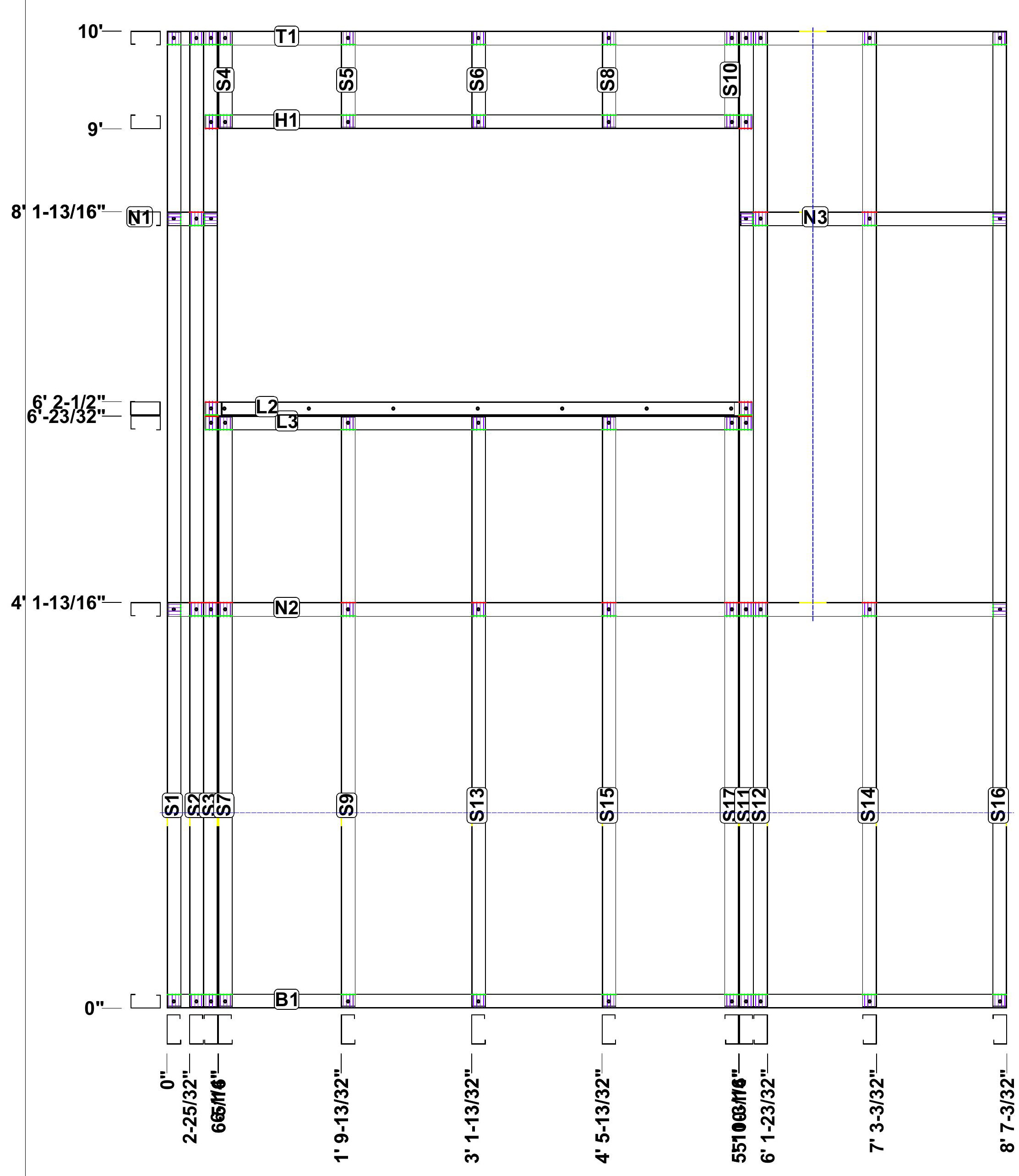

Details for Frame: N22
| Stick |
Stick Type |
Type |
Feet |
Inches |
Weight (Lbs) |
| S14 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S12 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S2 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S3 |
Trim Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S11 |
Trim Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S16 |
Stud |
Stud |
9.98 ft |
119.75 in |
12.07 lbs |
| S1 |
Stud |
Stud |
9.98 ft |
119.75 in |
12.07 lbs |
| T1 |
Top Plate |
Plate |
8.59 ft |
103.10 in |
10.39 lbs |
| B1 |
Bottom Plate |
Plate |
8.59 ft |
103.10 in |
10.39 lbs |
| N2 |
Nog |
Plate |
8.57 ft |
102.88 in |
10.37 lbs |
| S15 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S17 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S13 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S9 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S7 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| L2 |
Sill |
Plate |
5.60 ft |
67.19 in |
13.12 lbs |
| L3 |
Sill |
Plate |
5.60 ft |
67.19 in |
6.77 lbs |
| H1 |
Head Plate |
Plate |
5.60 ft |
67.19 in |
6.77 lbs |
| L2 (Box) |
Sill |
Plate |
5.25 ft |
63.00 in |
6.35 lbs |
| N3 |
Nog |
Plate |
2.72 ft |
32.63 in |
3.29 lbs |
| S5 |
Stud |
Stud |
0.98 ft |
11.80 in |
1.19 lbs |
| S4 |
Stud |
Stud |
0.98 ft |
11.80 in |
1.19 lbs |
| S6 |
Stud |
Stud |
0.98 ft |
11.80 in |
1.19 lbs |
| S8 |
Stud |
Stud |
0.98 ft |
11.80 in |
1.19 lbs |
| S10 |
Stud |
Stud |
0.98 ft |
11.80 in |
1.19 lbs |
| N1 |
Nog |
Plate |
0.50 ft |
6.03 in |
0.61 lbs |
