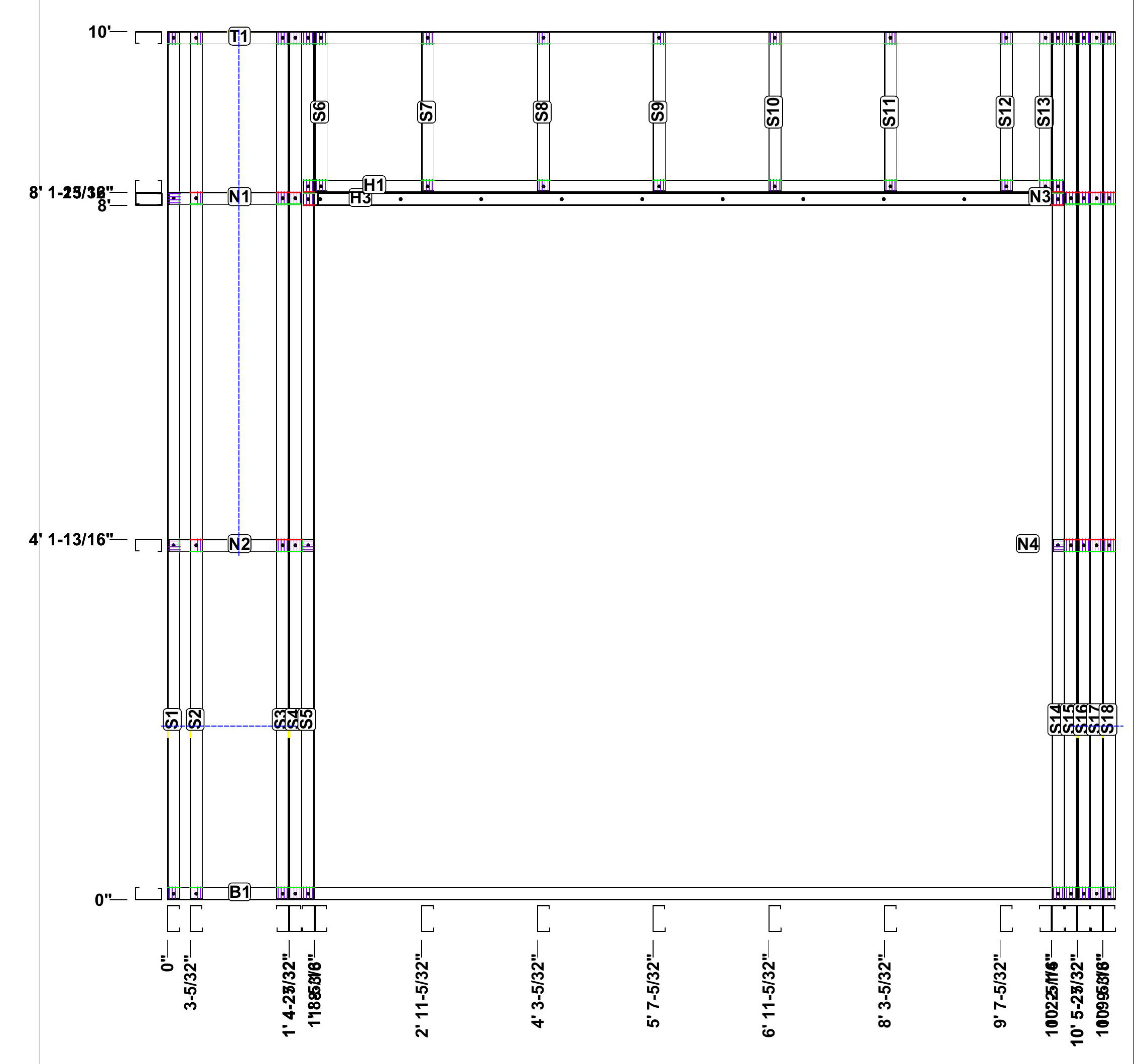

Details for Frame: N16
| Stick |
Stick Type |
Type |
Feet |
Inches |
Weight (Lbs) |
| T1 |
Top Plate |
Plate |
10.92 ft |
131.09 in |
13.22 lbs |
| B1 |
Bottom Plate |
Plate |
10.92 ft |
131.09 in |
13.22 lbs |
| S17 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S16 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S2 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S3 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S4 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S5 |
Trim Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S15 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S14 |
Trim Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S18 |
Stud |
Stud |
9.98 ft |
119.75 in |
12.07 lbs |
| S1 |
Stud |
Stud |
9.98 ft |
119.75 in |
12.07 lbs |
| H1 |
Head Plate |
Plate |
8.77 ft |
105.19 in |
10.60 lbs |
| H3 |
Head Plate |
Plate |
8.77 ft |
105.19 in |
20.79 lbs |
| H3 (Box) |
Head Plate |
Plate |
8.42 ft |
101.00 in |
10.18 lbs |
| S6 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S7 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S8 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S9 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S10 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S11 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S12 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| S13 |
Stud |
Stud |
1.83 ft |
21.99 in |
2.22 lbs |
| N2 |
Nog |
Plate |
1.67 ft |
20.09 in |
2.03 lbs |
| N1 |
Nog |
Plate |
1.53 ft |
18.32 in |
1.85 lbs |
| N4 |
Nog |
Plate |
0.72 ft |
8.66 in |
0.87 lbs |
| N3 |
Nog |
Plate |
0.58 ft |
6.96 in |
0.70 lbs |
