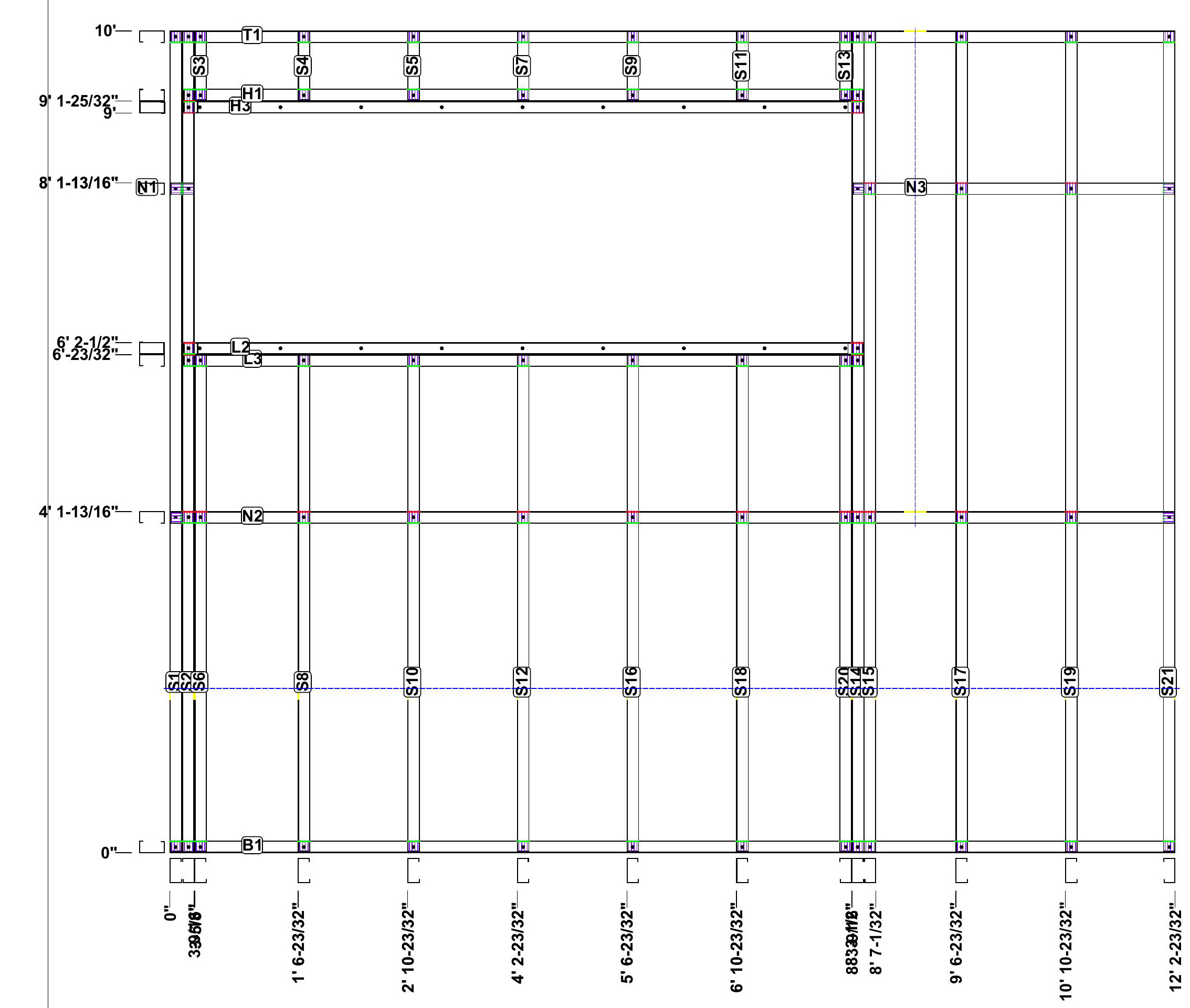

Details for Frame: N15
| Stick |
Stick Type |
Type |
Feet |
Inches |
Weight (Lbs) |
| T1 |
Top Plate |
Plate |
12.23 ft |
146.71 in |
14.79 lbs |
| B1 |
Bottom Plate |
Plate |
12.23 ft |
146.71 in |
14.79 lbs |
| N2 |
Nog |
Plate |
12.21 ft |
146.49 in |
14.77 lbs |
| S19 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S2 |
Trim Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S17 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S15 |
Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S14 |
Trim Stud |
Stud |
9.98 ft |
119.81 in |
12.08 lbs |
| S21 |
Stud |
Stud |
9.98 ft |
119.75 in |
12.07 lbs |
| S1 |
Stud |
Stud |
9.98 ft |
119.75 in |
12.07 lbs |
| H3 |
Head Plate |
Plate |
8.27 ft |
99.19 in |
19.58 lbs |
| H1 |
Head Plate |
Plate |
8.27 ft |
99.19 in |
10.00 lbs |
| L3 |
Sill |
Plate |
8.27 ft |
99.19 in |
10.00 lbs |
| L2 |
Sill |
Plate |
8.27 ft |
99.19 in |
19.58 lbs |
| H3 (Box) |
Head Plate |
Plate |
7.92 ft |
95.00 in |
9.58 lbs |
| L2 (Box) |
Sill |
Plate |
7.92 ft |
95.00 in |
9.58 lbs |
| S10 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S12 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S16 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S18 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S20 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S8 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| S6 |
Stud |
Stud |
6.04 ft |
72.49 in |
7.31 lbs |
| N3 |
Nog |
Plate |
3.91 ft |
46.93 in |
4.73 lbs |
| S5 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| S7 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| S9 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| S11 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| S13 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| S4 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| S3 |
Stud |
Stud |
0.83 ft |
9.99 in |
1.01 lbs |
| N1 |
Nog |
Plate |
0.28 ft |
3.34 in |
0.34 lbs |
