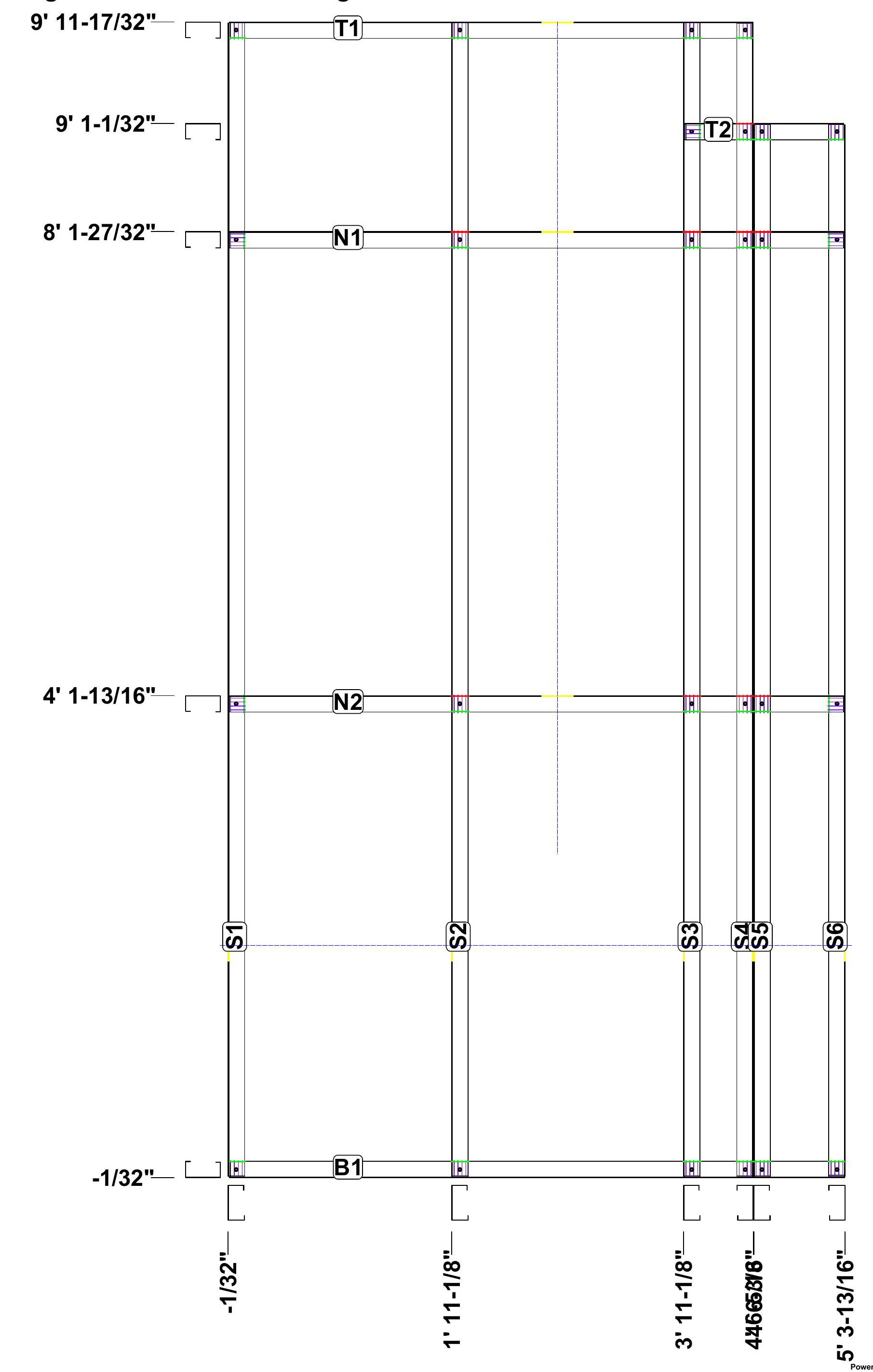

Details for Frame: N14
| Stick |
Stick Type |
Type |
Feet |
Inches |
Weight (Lbs) |
| S1 |
Stud |
Stud |
9.95 ft |
119.36 in |
12.03 lbs |
| S2 |
Stud |
Stud |
9.95 ft |
119.36 in |
12.03 lbs |
| S3 |
Stud |
Stud |
9.95 ft |
119.36 in |
12.03 lbs |
| S4 |
Stud |
Stud |
9.94 ft |
119.34 in |
12.03 lbs |
| S5 |
Stud |
Stud |
9.07 ft |
108.86 in |
10.97 lbs |
| S6 |
Stud |
Stud |
9.07 ft |
108.83 in |
10.97 lbs |
| B1 |
Bottom Plate |
Plate |
5.31 ft |
63.71 in |
6.42 lbs |
| N2 |
Nog |
Plate |
5.30 ft |
63.57 in |
6.41 lbs |
| N1 |
Nog |
Plate |
5.30 ft |
63.57 in |
6.41 lbs |
| T1 |
Top Plate |
Plate |
4.52 ft |
54.21 in |
5.46 lbs |
| T2 |
Nog |
Plate |
1.37 ft |
16.47 in |
1.66 lbs |
